Outstanding Eave And Rake In Roof Construction

Outstanding Eave And Rake In Roof Construction

When it comes to roof repair and planning a new or replacement roof, understanding the terminology is paramount. Moreover understanding roofing terminology, a key concepts that often arise is eave and rake. These terms play a crucial role in the construction and maintenance of roofs. One such distinction to comprehend is the difference between an eave and a rake.

In this blog post, we will delve into the definitions and disparities of these roof components. Our goal is to equip you with knowledge about eaves and rakes, including the materials used, maintenance requirements, and their crucial roles in ensuring a well-protected roof. So, let’s embark on this informative journey and shed light on the world of eave and rake in roof construction.

What Is The Difference Between Eave And Rake
What is the Difference Between Roof Rakes and Eaves?

Roof Rakes and Eaves: What is the Difference?

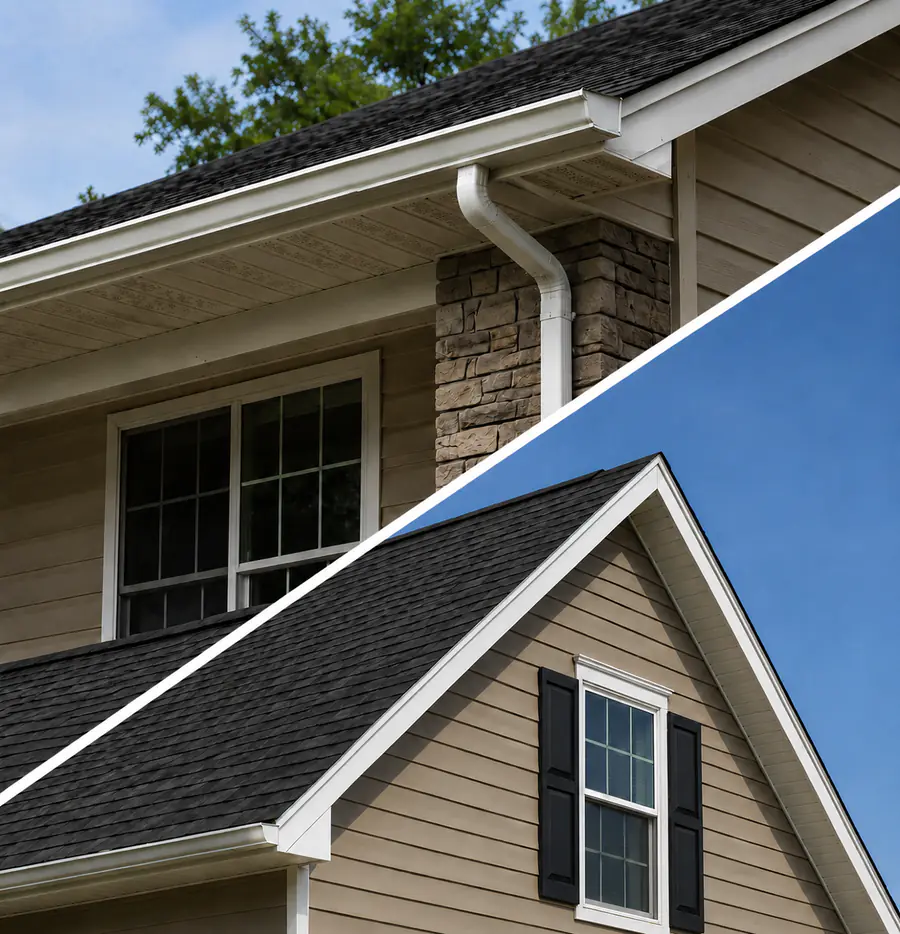

When it comes to roof construction, eave and rake, they share many similarities, but there are a few key exceptions to consider:

Firstly, eaves are horizontal roof overhangs located at the bottom edge of a roof section, while rakes are sloped sections of overhangs that extend from the eaves to the roof peak. Essentially, gables on a home have rakes overhanging them. Furthermore, gutters are typically attached to eaves, earning them the former name of “eave troughs.”

On the other hand, rakes do not accommodate gutters. Additionally, eaves require drip edges to facilitate efficient water runoff, while rakes do not necessitate them. Both eave and rake are integral components of the same roofing system, covered with the same roofing material.

The undersides of both eave and rake are referred to as wooden soffit. Additionally, the board positioned on the front of an eave or roof rake is known as a fascia board. However, when installed on roof rakes, these boards are also called rake boards. It’s worth noting that the presence of a roof chimney may interrupt the seamless flow of a roof rake edge along the slope of the roof.

Understanding Roof Eaves
Eave of Roof

What is the Eave of a House?

Eaves can be defined as horizontal overhangs situated at the bottom edge of a roof section. Their primary role is to safeguard the house from the effects of water runoff. By extending beyond the exterior walls, eaves prevent water from falling against the house siding or near the foundation. While they do provide some shade and shelter, their primary function is water diversion and protection.

Did you know that there are three distinct types of roof eaves?

  • Firstly, open eaves or exposed eaves lack any material extending back from the fascia to the wall.

As a result, they create a small cavity beneath the roof eave, which unfortunately becomes an inviting spot for nesting wasps and other insects.

  • Conversely, closed eaves, which are the standard today, utilize materials such as aluminum, vinyl, fiber cement, concrete board, or wood/wood composite like T1-11 to cover the space between the fascia and the house.
  • Lastly, boxed roof eaves share similarities with closed eaves but have a distinctive boxy appearance and may extend further down the exterior wall compared to closed eaves.
Roof Rakes
Rake Edge of Roof

Roof Rakes

Rakes are essentially similar to eaves, differ in that they slope from the eaves to the gable peak or ridge of the roof. To connect the eaves and rakes, a board known as a frieze board is used. Additionally, rake boards can be found on the sloped front of dormers, further enhancing their functionality. It’s worth noting that rakes are specific to gable roofs, while hip roofs exclusively feature eaves.

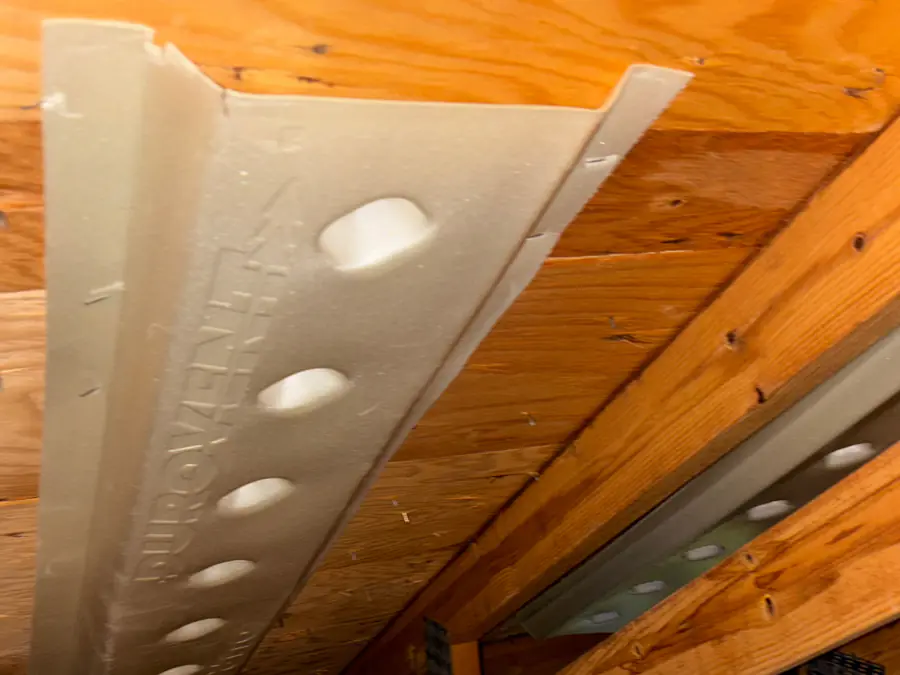

Both eave and rake play crucial roles in maintaining a healthy attic space and ensuring the overall well-being of your home. Now, let’s delve into the ventilation aspect of these structures. The material used on the underside, known as the soffit, is typically perforated or vented.

This design allows for adequate airflow into the attic, which is essential in preventing the accumulation of hot and humid air. Without proper ventilation, the attic becomes susceptible to issues such as mold, mildew, compromised framing, and even failure of roofing materials.

To address these concerns, ridge vents are installed at the top of the roof ridge. These vents facilitate the natural flow of moisture-laden hot air out of the attic, along with any additional roof vents that may be present. However, for this process to be effective, it is crucial to have a steady influx of fresh, drier, and cooler air from outside. This is achieved through vented or perforated soffit, which is installed on both eaves and rakes.

Materials Used For Eave And Rake
Materials Used for Eave and Rake

Materials Used for Roof Eave and Rake

When it comes to the construction of roof eave and rake, there are several components to consider.

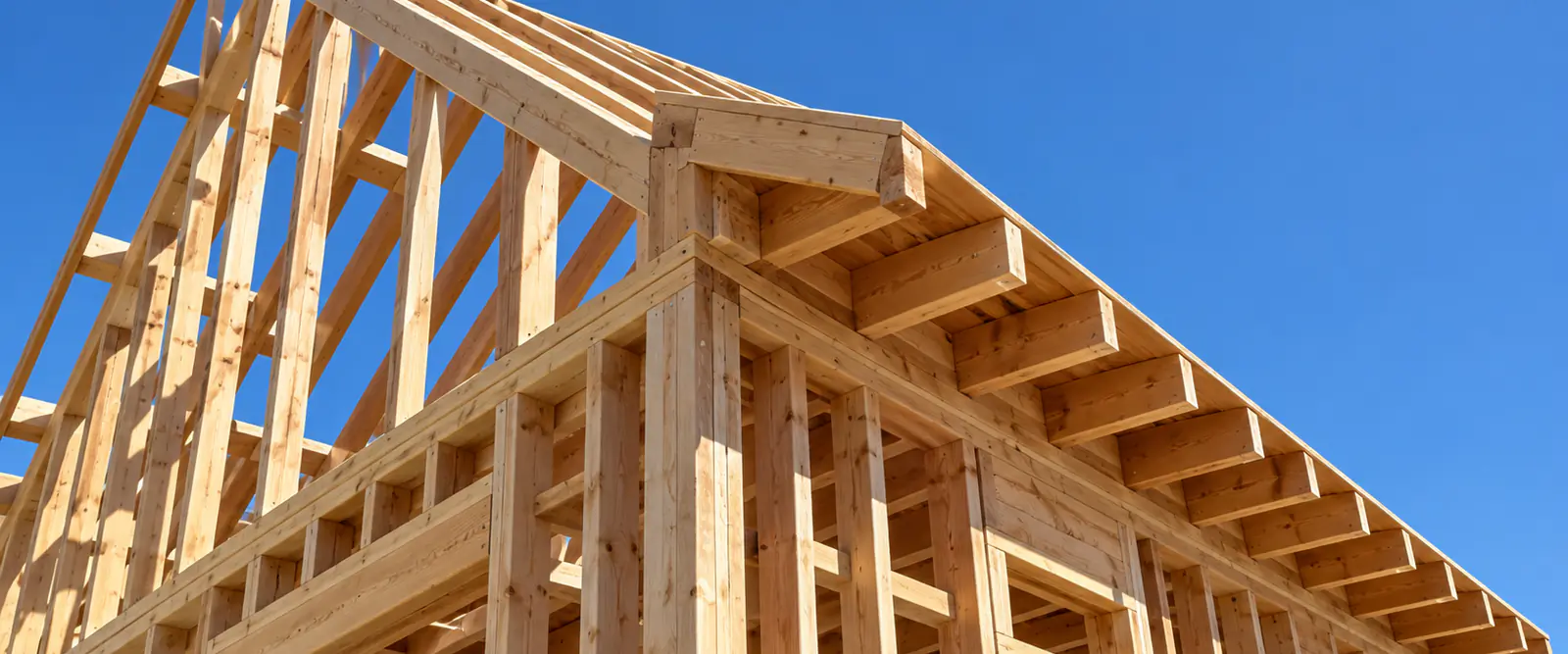

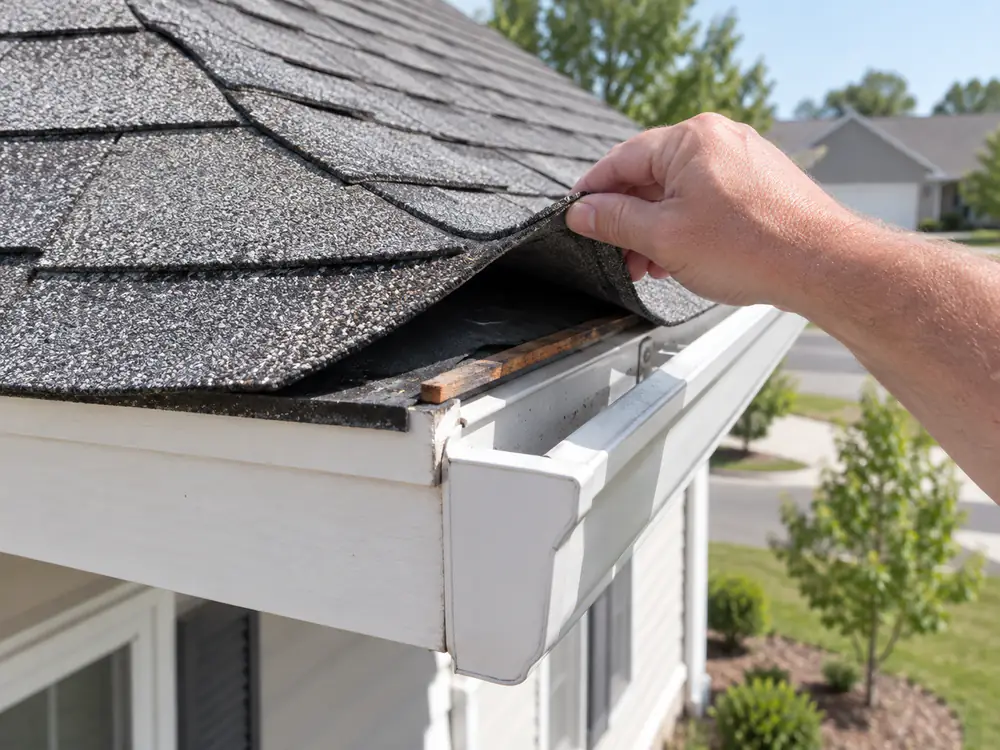

First and foremost, the foundation of eaves and rakes is the roof deck, which consists of plywood or OSB sheets securely attached to the trusses or rafters. This provides a sturdy base for the subsequent layers. Moving on to the fascia boards, these are nailed to the rafter or truss tails and serve as an important element in both eave and rake.

Traditionally, fascia boards are crafted from bare wood, often pine, with occasional use of cedar for enhanced durability. However, it is recommended to protect these boards by wrapping them in thin aluminum or, when suitable, using a copper sheath. Alternatively, solid PVC or vinyl fascia boards are available, offering a rot-free and insect-resistant option that eliminates concerns about paint peeling.

Now, let’s focus on the soffit, which refers to the underside of these roof components. The soffit extends from the fascia board to the exterior wall of the home, held in place by a trim piece attached to the siding or brick. In contemporary construction, most soffits are closed or boxed.

This means that a variety of materials can be chosen for this purpose. Perforated vinyl and aluminum are popular choices for closed soffits due to their affordability and ease of installation. These materials offer ventilation capabilities while maintaining a sleek appearance.

On the other hand, for those seeking a more robust aesthetic, vented fiber cement and wood options are available. These materials provide superior durability and a more visually appealing finish, but they come with a higher price tag.

When selecting the materials for eave and rake, it is important to consider factors such as longevity, maintenance requirements, cost, and desired aesthetic. By making informed choices, you can ensure that eave and rake not only perform their essential functions but contribute the durability of your roof.

Eave And Soffit Maintenance And Repairs

Eave And Soffit Maintenance And Repairs

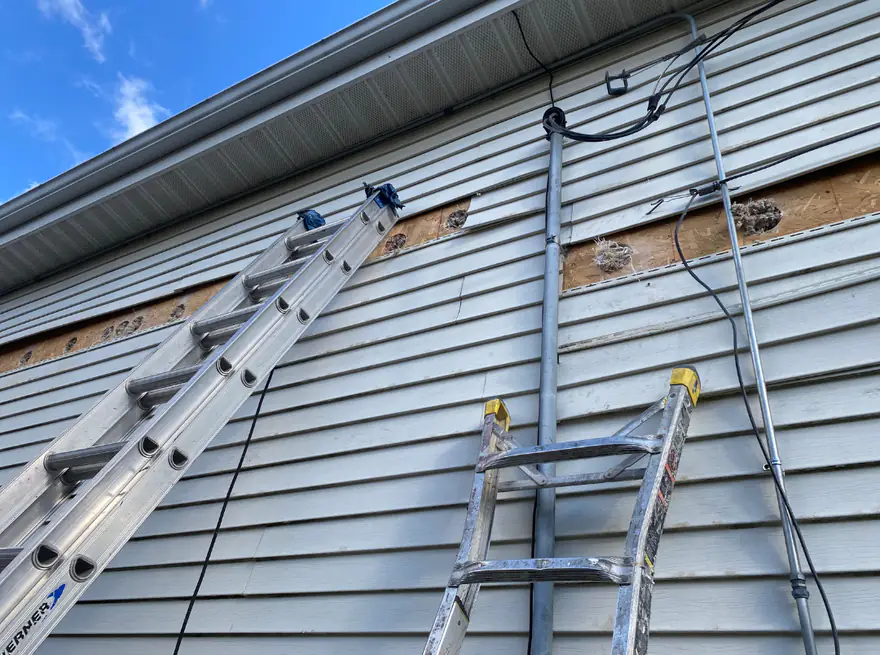

Maintaining eaves and soffits is crucial for the overall well-being of your home. Regular maintenance ensures their longevity and functionality. First and foremost, keep a close eye on your roof and promptly replace any damaged shingles. Cracked or cupped shingles, brittleness, and significant loss of granules are clear signs that replacement is necessary.

Moving on to the fascia and soffit, different materials require varying degrees of maintenance. Vinyl and aluminum fascia and soffit typically require minimal upkeep. However, if you notice fading of color or a chalky appearance, it may be time for a replacement.

On the other hand, fiber cement board and wood fascia and soffit need periodic painting to protect them from the elements. It is essential to stay vigilant and address any sagging soffit promptly.

By replacing it before it becomes compromised, you can prevent unwanted guests such as rodents, birds, and insects from infiltrating your attic space. Furthermore, it is important to address any damage resulting from storms or natural wear and tear. If your eaves, soffits, or other roof components have suffered storm damage or show signs of aging, it is crucial to initiate repairs as soon as possible.

Delaying repairs can exacerbate the problem and lead to further issues down the line. By addressing these issues promptly, you can prevent further damage and maintain the integrity of your roof.

Eave And Rake 2
Roof Eave and Rake

Common Questions about Eave and Rake

What does a rake rafter refer to?

A rake rafter is a specially designed roof rafter or truss that creates the rake of a roof, which is the overhang on the sloped edges. Is there a distinction between the rake of a roof and a roof rake? Indeed, there is a difference. As mentioned earlier, the rake of a roof pertains to the sloped overhangs. On the other hand, a roof rake is a tool utilized from the ground to remove snow from the roof.

What are some common issues associated with the rake of a roof?

The primary concern is the deterioration of roof boards due to inadequate maintenance. To prevent such rake damage, it is advisable to use more resilient materials capable of withstanding the elements, such as PVC or vinyl. If you prefer a wooden appearance, selecting cedar over pine is recommended. Additionally, bare wood should be protected by covering it with vinyl or aluminum.

Once the rake boards are compromised, there is also a possibility of pests accessing the attic and subsequently entering your home. Moreover, if a chimney intersects with the rake, it is crucial to ensure that the flashing surrounding the chimney is in good condition, properly positioned, and sealed with caulk or tar at the top.

How frequently should eave and rake undergo inspection?

Eaves and rakes should be inspected at least twice a year, in addition to conducting inspections after severe storms that may have caused damage in your area. Typically, a roofing contractor like Green attic insulation will also assess the condition of  eave and rake during inspections.

By understanding the relationship between eave and rake, the significance of frieze boards, and the ventilation mechanisms employed through vented soffit, you can ensure a healthy and well-ventilated attic space.
